Bryant Heat Pumps

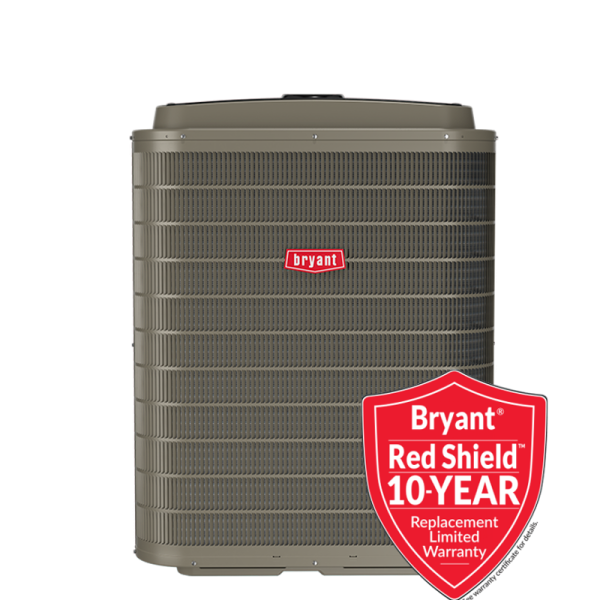

Evolution™ Extreme 23 Variable-speed Heat Pump
Taking Comfort And Quiet To A Whole New Level
Bryant's most powerful heat pump, this unique heat pump uses inverter technology to deliver variable-speed control with our highest efficiencies. That translates to highly efficient heating and cooling operation optimized to current conditions down to 20% capacity for ultra-quiet, even-temperature comfort. What's more, it can provide exceptional summer dehumidification.
Energy Star® Qualified : All sizes qualified
COOLING EFFICIENCY: Up to 23 SEER2
HEATING EFFICIENCY: Up to 9.5 HSPF2
Features
• Enjoy cool, summer comfort with up to 23 SEER2/ up to 13 EER2 efficiency
• Take advantage of efficient electric heating well into the winter months with up to 9.5 HSPF2 efficiency
• Optimal dehumidification capability with the Evolution™ Connex™ Control
• Variable-speed operation with longer, lower stage cycles to give you more energy savings and better temperature management
• Exceptionally quiet operation in low speeds down to 55 decibels
• Quiet Mode feature allow homeowners to limit the units sound level from the wall control – ensuring quiet time on your patio and an uninterrupted night sleep
• New advanced defrost uses the latest in heat pump technology to only run when needed and to stop defrost only when the coil is free of frost.
• Soft start and smooth ramp up to operating speeds
• Senses operating conditions and adjusts to enhance system reliability
• Excellent performance with zoned systems
• Bryant's smallest ducted, variable-speed heat pump can fit discreetly into your landscape
• Uses low GWP Puron Advance® refrigerant
• Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
• Attractive, louvered cabinet protects the coil against physical damage
• 10-year parts limited warranty upon registration1
• Red ShieldTM 10-year unit replacement warranty (compressor failure only) upon timely registration2
•
• 1 The limited warranty period is five years on parts if not registered within 90 days except in jurisdictions where warranty benefits are not conditioned upon registration will automatically receive a 10-year parts limited warranty. See limited warranty certificate for complete details and restrictions.
• 2 Unit replacement limited warranty is not available to subsequent owners. The limited warranty period is five years if not registered within 90 days except in jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year unit replacement limited warranty. See limited warranty certificate for complete details and restrictions.
